Handle type fully welded ball valve

Handle type fully welded ball valve

1. Without maintenance, adjustment and lubrication, it is easy to install and operate reliably for a long time at low operating cost. The surface adopts spray treatment technology, with beautiful luster. There will be no external leakage. The valve body is of welded construction, so the valve is light and easy to insulate. It is very simple to install the adjusting mechanism. The operating handle can be removed and installed in reverse direction.
2. Since the valve seat is composed of PTFE sealing ring and butterfly spring, it has strong adaptability to the changes of pressure and temperature, and there will be no leakage in the use range.
3. The machining process of the ball has advanced computer detector tracking detection, so the machining accuracy of the ball is high.
4. As the valve body material is the same as the pipe material, it will not cause uneven stress and deformation due to earthquake and vehicle passing through the ground, so the pipeline is aging resistant.
5. Integral full welding, equal diameter and variable diameter channel, fixed ball and floating ball, double piston effect sealing system, automatic injection sealant type bearing.
6. In order to prevent static electricity, steel balls and springs are respectively installed between the valve stem and the ball and between the valve stem and the packing box, which can keep the electric conduction between all parts of the valve and the valve body, and let the current pass through the area to release static electricity. Not only to prevent fire, but also to prevent corrosion, to achieve temporary cut-off for timely maintenance.




Executive Standards

Design specification: API 6D, ASMEB 16.34
Pressure - temperature classes: ASME B16.34, API608
Structure length: ASME B16.10, GB12221
Butt welding form: ASME B16.25, ASME B31.4/31.8
Inspection and test: API 598, API 6D, GB13927
Fire resistance test: API 607, API 6FA




Performance parameter

Nominal diameter: DN15 ~ 200mm
Nominal pressure: PN1.6~ 4.0mpa
Operating temperature: -29℃ ~ +200℃
Suitable medium: petroleum/gasoline, liquefied natural gas/liquefied petroleum gas, petrochemical industry, steel works, heating pipeline, etc
Operation mode: handle, gear (vertical/horizontal), electric, worm wheel

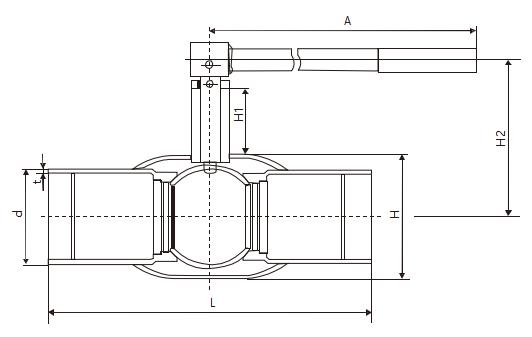

Product size

DN(mm)

Bore

H

d

t

L

H1

H2

A

W T(kg)

A/B

50

40

89

60.3/57

4

300

35

135

180

4

65

50

108

76.1/76

4

300

35

144

275

5.2

80

65

133

88.9/89

5

300

44

154

275

6.3

100

80

159

114.6/108

5

325

50

193

365

11.0

125

100

193

139.7/133

5

325

42

218

365

16

150

125

219

168.3/159

6

350

83

343

650

24

200

150

273

219/219

7

400

84

345

800

39
